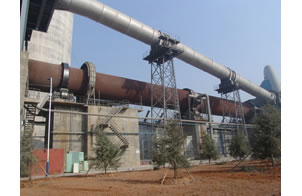

Φ4×60m Rotary Kiln

Main Technical Performance of φ4×60m Rotary Kiln:
1. Production capacity: 2500t/d new type dry process cement production line.
2. Main driving speed: 0.41-4.07r/min, inclination: 4%.
3. Auxiliary transmission speed: 8r/h.
4. Amount of supports: 3.
5. Sealing type: Sheet steel sealing for the kiln outlet, and for sealing kiln rear, air cylinder used to tightly compress its end surface. (other types available)
6. Cooling mode of kiln outlet: air cooling.
7. Driving mode: single driving.
8. Thrust roller type: hydraulic thrust roller
9. Motor model of main driving: ZSN4-355-092; power: 315kW; rated revolution: 1000r/min; armature voltage: 440V; exciting voltage: 180V; range of speed regulation: 100-1000r/min.
10. Tachogenerator: ZYS-100A; power: 8w; maximum rotating speed: 1000r/min; maximum operating voltage: 100v; maximum load current: 80mA.
11. Main speed reducer: YNS1110-22.4-VBR I=22.4.
12. Auxiliary driving motor: Y180L-4; power: 22kW; rated rotating speed: 1470r/min; rated voltage: 380V.
13. Speed reducer for auxiliary driving: YNS440-45-ⅡR I=45
14. Gear driving: open m=28 Z1/Z2=19/218

As a professional manufacturer and supplier ofφ4×60m rotary kiln in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as titanium dioxide rotary kiln, lime rotary kiln, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need φ4×60m rotary kiln, please don't hesitate to contact us.
