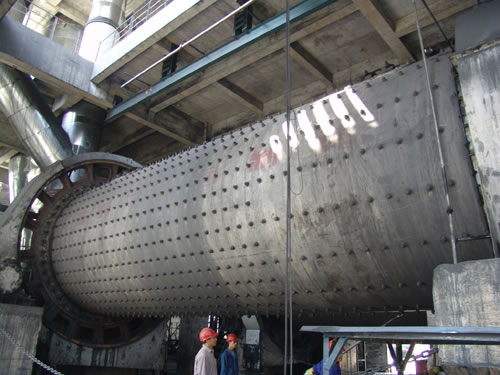

Air Swept Coal Mill
Description of Air Swept Coal Mill:
This air swept coal mill is specially used to dry and grind coal. And it is mainly consist of feeding device, main bearing, rotary part, transmission device, high voltage starting device, and lubrication system.
Raw materials enter into the mill by the feeding device, and the hot air gets into the mill through the air tube. When the mill cylinder begins to rotate, coal and hot air can exchange heat with each other. Meanwhile, the coal will be crushed and grinded in the air swept coal mill. While the coal is grinded, fine powder will be taken by the hot air out of the mill through the discharging device.
Featuring rational structure and high grinding efficiency, this air swept coal mill is an ideal choice for coal pulverization.
Parameters of Air Swept Coal Mill:
| Specification (diameter×length ) |
Rotating speed (r/min) |
Particle size of feeding material (mm) |
Production capacity (t/h) |
Loading weight (t) | Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ2.2×4.4m | 22.4 | ≤25 | 8~9t/h | 18t | YRKK4501-6 | 250 | 986 | ZD60-11 | 6.3 | 36.7 |
| φ2.2×5.8m | 22.4 | ≤25 | 5.5~7 | 23.5~25 | Y4005-8 | 280 | 750 | ZD70-10 | 5.6 | 45 |
| φ2.4×4.75m | 21.2 | ≤25 | 14 | 22~24 | YR4501-8 | 315 | 740 | ZD60-8 | 4.5 | 49 |
| φ2.4×4+2m | 20.2 | ≤25 | 10~11 | 19 | YRKK450-8 | 250 | 740 | ZDY355 | 4.5 | 60 |
| φ2.4×4.5+2m | 20.2 | ≤25 | 10~12 | 20.8 | YRKK500-8 | 280 | 740 | JDX45 | 4.5 | 68 |
| φ2.6×(5.25+2.25)m | 19.7 | ≤25 | 9~10 | 28 | YRKK500-8 | 400 | 740 | ZDY450 | 4.5 | 87.4 |
| φ2.8×(5+3)m | 18.7 | ≤25 | 13~13.5 | 32 | Y5001-8 | 500 | 740 | JDX560 | 4.5 | 102 |
| φ2.9×4.7m | 19.1 | ≤25 | 14~19 | 34.4 | YR560-8 | 500 | 743 | MBY560 | 5.6 | 79 |
| φ2.5×3.9m | 21 | ≤25 | 14 | 21 | JR138-8 | 280 | 740 | ZD70-9 | 5 | 49.5 |
| φ3×(6.5+2.5)m | 18.3 | ≤25 | 17~19 | 43 | YRKK5603-8 | 630 | 740 | MBY560 | 5 | 120 |
| φ3.2×4.8m | 16.7 | ≤25 | 20 | 48 | YR630-8 | 630 | 740 | MBY560 | 5 | 118 |
| φ3.2×(6.5+2)m | 16.9 | ≤25 | 20 | 50 | YRKK560-8 | 710 | 740 | JDX630 | 5 | 137 |
| φ3.5×8m | 17.2 | ≤25 | 55~60 | 80 | YRKK710-8 | 1000 | 740 | MBY800 | 6.3 | 182 |
| φ3.8×(7.75+3.5)m | 16.7 | ≤25 | 85 | 85 | YRKK710-8 | 1400 | 740 | JDX90-WX-2A | 5.6 | 215 |
Note: Parameters in the form is just for reference, and specific parameters should be in accordance with the signed contract.
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of air swept coal mill in China. Besides air swept coal mill, we also provide customers worldwide with slag ball mill, mining mill, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our air swept coal mill, please contact us freely.
