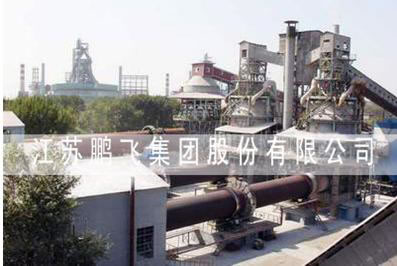

Lime Rotary Kiln (Active Lime Calcining Equipment)

Description of Lime Rotary Kiln (Active Lime Calcining Equipment):
Active lime can be widely used in a wide range of industries, such as steel, alumina, magnesium, calcium carbide, papermaking field, etc. As an important auxiliary material, active lime can not only help to improve the quality and output of steel, but also reduce the consumption and costs as well as ensure stable operation of steel industry. Considering the potential economic benefits of active lime for various fields, Jiangsu Pengfei Group Co., Ltd has developed the 1000t/d lime rotary kiln for customers worldwide. And now this machine has been well received by clients from Vietnam, Russia, Central Africa, and more.

Advantages of Lime Rotary Kiln (Active Lime Calcining Equipment):
1. High productivity makes it possible for our lime rotary kiln to be used in large active lime production line.
2. Open-type calcining rotary kiln has a simple structure, and can discharge sulfurous gases timely, which makes it quite suitable for steelmaking.
3. It is capable of calcining 10 to 50mm fine limestone directly.
4. Vertical preheater has been equipped at the end of the kiln to make full use of high-temperature gases generated during calcining. It can preheat limestone to the decomposition conditions. In this way, it helps not only to increase the output, but also to decrease the heat consumption.
5. The equipped vertical cooler at the head of the kiln can help cool the high-temperature limestone, as well as make it convenient to convey and store. Besides, it can effectively increase the temperature inside the kiln, thus reducing the fuel consumption.
6. Waste gases, discharged from the vertical preheater, have a temperature ranging from 280℃ to 350℃, and their dust content is about 20g/Nm3. So it is easy to deal with these gases according to the requirements of environmental protection.
7. With stable performance, our active lime calcining equipment is also suitable for mine exploitation.

Technical Parameters of Lime Rotary Kiln:

Specification (m) Φ2.5×40 φ2.8x42 Φ3x46 Φ3.2x50 φ3.2x54 φ3.6x56 φ3.8x58 Φ4x60 Φ4.3x58 Φ4.3x64 Φ4.8x68
Effective volume (m3) 142 190 235 292 390 430 505 575 670 738 1005
Burning temperature (℃) 1350/1250 1350/1250 1350/1250 1350/1250 1350 1350 1350 1350 1350 1350 1350
Productivity (t/d) 150 200 250 300 350 400 500 600 750 800 1000


Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of lime rotary kiln in China. Besides lime rotary kiln, we also provide customers worldwide with vertical preheater, active lime production line, cement production line, cement grinding plant, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our lime rotary kiln, please contact us freely.
