Disc Granulator

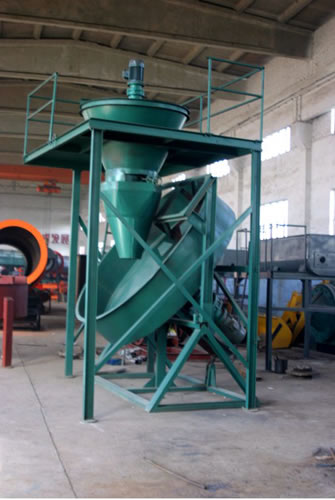

Description of QPY Disc Granulator:
Our QPY disc granulator is typically designed to process compound fertilizers into specific shapes, and granules processed by this machine are in the same size. It has advantages of simple structure, energy saving, less quick-wear components, easy repair and maintenance, reliable performance, and more.
Mounted on a frame with a certain inclination angle, the round disc is driven by the transmission device to rotate, and the rotary scrapper over the round disc can not only rapidly process the fertilizers into specific shapes, but also clean up particles at the bottom of the disc.
The adjustment of particle sizes can be achieved only by adjusting the height of the round disc rims.
Parameters of QPY Disc Granulator:
| Specification | Productivity (t/h) | Motor model | Power (kw) | Model of speed reducer | Inclination angle of disc | Rotate speed of disc (r/min) | Weight (kg) |
| QPY2200 | 3-5 | Y132M-4 | 7.5 | JZQ400 | 45-55° | 13.3 | 2850 |
| QPY2500 | 4-6 | Y132M-4 | 7.5 | JZQ400 | 45-55° | 13.3 | 3250 |
| QPY2800 | 5-8 | Y132M-4 | 7.5 | JZQ450 | 45-55° | 13.3 | 3710 |
| QPY3000 | 8-12 | Y160M-4 | 11 | JZQ500 | 45-55° | 11.3 | 4350 |
| QPY3200 | 10-15 | Y160M-4 | 11 | JZQ500 | 45-55° | 11.3 | 5110 |
| QPY3600 | 15-25 | Y160M-4 | 15 | JZQ600 | 45-55° | 10.0 | 6510 |
| QPY4200 | 20-30 | Y180M-4 | 18.5 | JZQ600 | 45-55° | 10.0 | 9050 |
| QPY4500 | 25-40 | Y180M-4 | 22 | JZQ750 | 45-55° | 9.6 | 16700 |
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of disc granulator in China. Besides disc granulator, we also provide customers worldwide with rotary drum granulator, ammonization granulator, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our disc granulator, please contact us freely.
