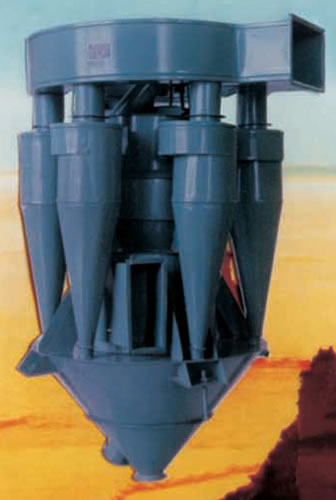

Powder Separator (Powder Concentrator)
Description of Powder Separator:
This powder separator, usually referred to as powder concentrator, is specially designed to classify clinker and raw materials in cement plant, and together with a ball mill, it can build up a closed-circuit grinding system. It can be used in a wide variety of fields, such as powder, cement, chemical industry, metallurgy, among others. Developed on the basis of technical improvement as well as practical requirements, our powder concentrator has the features of even and rapid material distribution, reliable and easy adjustment, high-efficiency classifying, convenient assembly, easy maintenance , stable performance, just to name a few.
Features of Powder Separator:
1. Innovative structure: it is an advanced combination of centrifugal, cyclone and double-rotor types. As a result, it can save a great deal of energy.
2. High efficiency and energy saving: materials are classified in different classification zones, and its unique material distribution structure ensures high-efficiency powder separation work. Its classification efficiency is more than 85%, and its electricity consumption is more than 30% less than that of a traditional one.
3. High adaptability: this powder separator can deal with particles in different sizes, so it can always get high-quality cement.
4. Able to effectively prevent dewing, it can be used in both humid and cold environments.
5. Multi-section lining plates have been employed to effectively prolong the working life of main motor.
Technical Parameters of Powder Separator:
| Powder | Model | N500 | N750 | N1000 | N1500 | N2000 | N2500 | N3000 | N3500 | N4000 |
| Output (t/h) | 15~30 | 27~44 | 35~50 | 50~80 | 70~90 | 90~120 | 110~160 | 130~190 | 144~200 | |
| Max.feeding capacity (t/h) | 90 | 135 | 180 | 270 | 360 | 450 | 540 | 630 | 720 | |
| Air volume (m3/h) |
30000 ~40000 |
45000 ~55000 |
60000 ~70000 |
90000 ~110000 |
120000 ~150000 |
150000 ~180000 |
180000 ~240000 |
210000 ~240000 |
240000 ~280000 |
|
| Resistance | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | 1.6~1.8 | |
| Speed reducer | Model | KF128-K2-180 | KF148-K2-200 | B2SV5 | B2SV5 | B2SV6 | B2SV6 | B2SV7 | B2SV7 | B2SV8 |
| Speed ratio | 9.16 | 4.83 | 5.6 | 6.3 | 6.3 | 7.1 | 7.1 | 7.1 | 8 | |
| Motor | Model | Y180M-2 | Y200L-4 | Y250M-4 | Y280M-4 | Y315S-4 | Y315M2-4 | T315L2-4 | Y355M2-4 | Y355L2-4 |
| Power(kw) | 22 | 30 | 55 | 90 | 110 | 160 | 200 | 250 | 315 |
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of powder separator (powder concentrator) in China. Besides powder separator, we also provide customers worldwide with Vertical mill, vertical raw mill, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our powder concentrator, please contact us freely.
