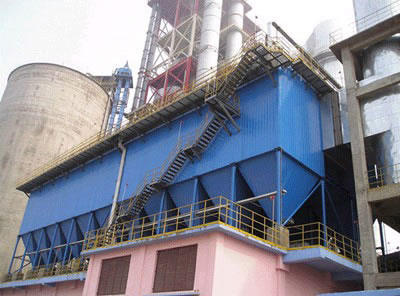

BFRS Kiln Inlet Bag Filter
Technical Parameters of BFRS Kiln Inlet Bag Filter:
| Model |
BFRS700 -2×3 |
BFRS700 -7 |
BFRS1200 -2×6 |
BFRS1200 -2×7 |
BFRS1200 -2×8 |
||
| Technical performance | Flue gas treating volume | ≤88500 | 102100 | 310000 | ≤370000 | ≤423000 | |
| Gas temperature | <250 | <250 | ≤250 | ≤250 | ≤250 | ||
| Feeding dust concentration | ≤80 | 80 | ≤80 | ≤80 | ≤80 | ||
| Discharging dust concentration | ≤100 | 100 | ≤100 | ≤100 | ≤100 | ||
| Total filtering area (m2) | 4116 | 4872 | 14033 | 16263 | 18586 | ||
| Filtration air speed (m/min) | 0.36 | 0.34 | 0.37 | 0.38 | 0.38 | ||
| Net filtration air speed (m/min) | 0.5 | 0.46 | 0.45-0.49 | 0.46-0.49 | 0.45-0.48 | ||
| Resistance of environmental protection equipment(Pa) | 1470 | 1766 | 1470 | 1470 | 1470 | ||
| Pressure of environmental protection equipment(Pa) | 3920 | 3920 | 3920 | 3920 | 3920 | ||
| Pressure of air inlet (Pa) | >-1500 | -290~-490 | |||||
| Structural performance | Chamber amount×bag amount in each chamber | 6×140=840 | 7×140=980 | 12×138=1656 | 14×138=1932 | 16×138=2208 | |
| Specification of filtering bag | φ200×7794 | φ200×7794 |
φ302×9296(135 bags) φ302×7162(3 bags) |
φ302×9296(135 bags) φ302×7162(3 bags) |
φ302×9296(135 bags) φ302×7162(3 bags) |
||
| Material of filtering bags | CW300-FQ803 | CW300-FQ803 | CW300-FQ803 |
ETWF500 S=0.45 |
ETWF500 S=0.45 |
||
| Blowback fan model×static pressure×air volume |
Y5-47NO8 2292 Pa× 16800 |
230IE×14〞 ×15254 |
Y5-48 NO12.5 2980 Pa ×35240 |
Y5-47 NO12D 3577 Pa× 46000 |
Y5-47 NO12D 3577 Pa× 46000 |
||
| Rotating speed of motor×shaft power |
Y200L-4 30kw |
1488rpm ×23kw |
Y280S-4 1450rpm ×75kw |
Y280S-4 1450rpm ×75kw |
Y280S-4 1450rpm ×75kw |
||
| Specification of spiral gate | 300×300 |
14 blowback fans φ914QGB -FQ125×355 |
16 blowback fans φ914QGB -FQ125×355 |
||||
|
Lift valve specifications×amount Air cylinder model |
Three φ510 10A-5 WFA1008 145A5 |
Seven φ510 QGBⅡF-100 ×280-MF1 |
Twelve φ914 QGB-FQ125 ×355-L2 |
Fourteen φ914 QGB-FQ125 ×355 |
Sixteen φ914 (36°) QGB-FQ 125×350 |
||
|
Purge valve specification×amount Air cylinder model |
One φ510 10A-5VFA 100B148A5 |
One φ460 QGBⅡF-100 ×280-MF1 |
One φ914 QGB-FQ125 ×355-L2 |
One φ914 QGB-FQ125 ×35 |
One φ914 QGB-FQ125 ×35 |
||
|
Butterfly valve×amount Cylinder |
Six 600 ×90010A- 5VFA100B 148A5 |
||||||
| Overall dimensions L×W×H(mm) |
13491×9144 ×17555 |
26423×3765 ×17450 |
18288×21232 ×18617 |
21336×21032 ×16375 |
24384×21032 ×16375 |
||
| Equipment weight (kg) | 103017 | 108999 | 373890 | 426400 | |||
| axial flow fan |
35-11NO6.3 1450rpmYSF -80240.75kw |
||||||
As a professional manufacturer and supplier of kiln inlet bag filter in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as cyclone environmental protection equipment, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need kiln inlet bag filter, please don't hesitate to contact us.
