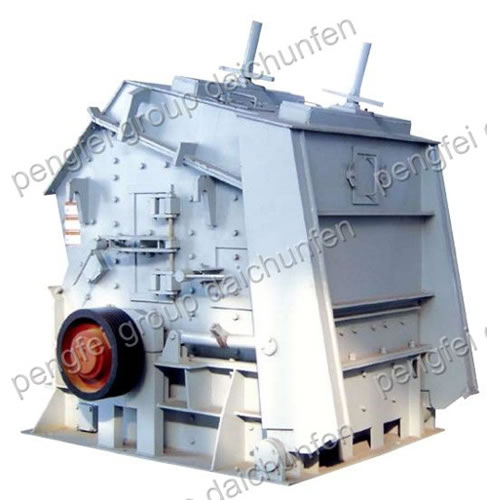

Impact Hammer Crusher

Description of Our PF Series Impact Hammer Crusher:
Our PE series impact hammer crusher is typically designed to crush various ores whose granularity is no more than 500mm and compressive strength no less than 350 MPa, like granite, limestone, basalt, and more. And it can be widely used in a large variety of fields, such as water and electricity, expressway, railway, artificial dinas, construction, etc.

The shape of this kind of crusher is cubic, and its discharging particle size is adjustable. It features high crushing ratio, high efficiency, energy saving, easy maintenance, and so on.

The working principle of this machine is as follows: rotor rotates rapidly driven by the motor. When materials enter into the crusher, they will be broken by impacting the hammer and lining plates again and again until they are discharged out via the discharge hole.

Technical Parameters of PF Series Impact Hammer Crusher

Model Size (mm) Feeding mouth size (mm) Max.feeding length (mm) Production  Capacity (t/h) Motor Power (kw ) Weight (excluding electric motor)t
PF-0607 Ф644x740 320x770 100 15-25 30 4
PF-0807 Ф850x700 400x730 300 25-35 30-45 8.13
PF-1007 Ф1000x700 400x730 300/600 37-45 30-55 9.5
PF-1010 Ф1000x1050 400x1080 350/600 50-80 55-75 13.2
PF-1013 Ф1000x1300 650x1350 400/600 80-120 90-110 12
PF-1210 Ф1250x1050 400x1080 350/600 70-120 110-132 15.2
PF-1214 Ф1250x1400 400x1080 350/600 130-180 132-160 20
PF-1310 Ф1300x1050 490x1170 400/650 70-120 110-160 13.5
PF-1315 Ф1320x1500 860x1520 500/650 150-220 180-220 20.5
PF-1320 Ф1320x2000 860x1520 500/650 160-250 180-260 19
PF-1515 Ф1500x1500 850x1580 550/700 220-280 280-315 29.5


Note: Parameters in the form are just for reference, and specific ones need referring to the contract.

Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of impact hammer crusher in China. Besides impact hammer crusher, we also provide customers worldwide with spring cone crusher, hammer crusher, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our impact hammer crusher, please contact us freely.
