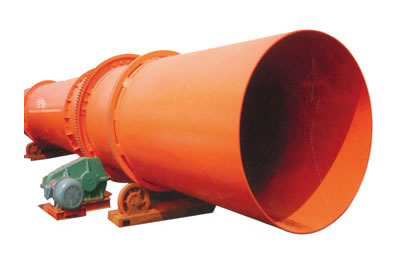

Rotary Cooler
Technical Parameters of LQ Series Rotary Cooler:
| Specification | Output | Rotating speed of cylinder | Cylinder slope | Main motor | Main speed reducer | Weight | |
| Model | Power | ||||||
| 1.2×10 | 3.0-5.0 | 4.0 | 2.5° | Y132M-4 | 7.5 | ZL40 | 10.0 |
| 1.4×12 | 4.0-6.0 | 3.3 | 2.5° | Y160L-6 | 11.0 | ZL60-40 | 15.8 |
| 1.5×14 | 5.0-10 | 3.3 | 2.5° | Y180L-6 | 15.0 | ZL70 | 19.5 |
| 1.6×16 | 5.5-11 | 3.5 | 2.5° | Y300L-4 | 18.5 | ZSY200-22.4 | 21.5 |
| 1.8×14 | 6.0-12 | 3.1 | 2.5° | Y200L1-6 | 18.5 | ZSY200-40 | 24.5 |
| 1.8×18 | 6.5-13 | 3.1 | 2.5° | Y225M-6 | 22.0 | ZL75-25-Ⅱ | 28.8 |
| 2.0×16 | 7.0-14 | 3.16 | 2.5° | Y255M-6 | 22.0 | ZL85-25-Ⅱ | 36.5 |
| 2.0×20 | 7.5-15 | 3.16 | 2.5° | Y280S-6 | 30.0 | ZL85-25-Ⅱ | 42.0 |
| 2.2×18 | 7.5-15 | 3.0 | 2.5° | Y280S-6 | 45.0 | ZSY250-35.5 | 45.8 |
| 2.2×22 | 8.0-16 | 3.0 | 3.5% | Y280S-6 | 45.0 | ZSY250-35.5 | 48.0 |
| 2.4×18 | 9.0-18 | 4.9 | 2.5° | Y225M-4 | 45.0 | ZSY250-31.5 | 56.5 |
| 2.4×22 | 10-20 | 3.6 | 2.5° | Y280M-6 | 55.0 | ZSY315-31.5 | 63.0 |
| 2.4×26 | 11-22 | 3.6 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 69.0 |
| 2.6×24 | 12-24 | 3.6 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 72.5 |
| 2.6×26 | 14-28 | 3.1 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 81.0 |
| 2.8×24 | 15-30 | 3.1 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 90.6 |
| 2.8×28 | 16-32 | 3.1 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 96.5 |
| 3.0×24 | 20-40 | 3.05 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 92.6 |
| 3.0×28 | 22-45 | 5.9 | 3.5% | Y315M-6 | 90.0 | ZSY315-31.5 | 108.0 |
| 3.0×30 | 25-50 | 3.85 | 3.5% | Y315S-4 | 110 | ZSY355-35.5 | 112.0 |
| 3.2×26 | 25-50 | 3.85 | 3.5% | Y315S-4 | 110 | ZSY355-35.5 | 125.0 |
| 3.2×28 | 28-55 | 3.47 | 2.5° | Y315L2-6 | 132 | ZSY355-35.5 | 132.0 |
| 3.4×28 | 30-60 | 3.47 | 2.5° | Y355M1-6 | 160 | ZSY400-35.5 | 156.6 |
| 3.4×30 | 32-65 | 3.47 | 2.5° | Y355M1-6 | 160 | ZSY400-35.5 | 166.0 |
| 3.6×32 | 35-70 | 4.95 | 3.5% | Y315M-4 | 185 | ZSY500-35.5 | 175.0 |
| 3.6×36 | 38-75 | 4.95 | 3.5% | Y355S2-4 | 200 | ZSY500-35.5 | 185.0 |
| 3.8×30 | 40-80 | 3.18 | 2.5° | Y355S2-4 | 200 | ZSY500-35.5 | 206.0 |
| 4.0×32 | 45-90 | 3.18 | 2.5° | Y355L-6 | 220 | ZSY500-31.5 | 215.0 |
| 4.0×34 | 50-100 | 3.0 | 2.5° | YJS355L-6 | 250 | ZSY500-35.5 | 230.0 |
Note: The feeding temperature is 65-85℃, and the discharging temperature is less than 45℃.
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of rotary cooler in China. Besides rotary cooler, we also provide customers worldwide with rotary packer, fertilizer vibrating screen, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our rotary cooler, please contact us freely.
