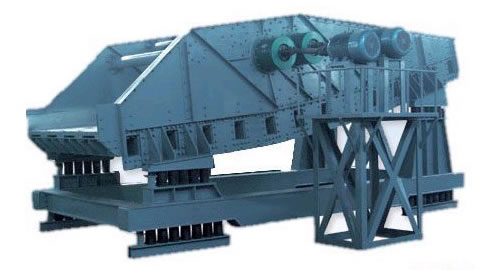

Fertilizer Vibrating Screen
Description of Fertilizer Vibrating Screen:
Our fertilizer vibrating screen is mainly used in screening and separating of semi-finished and finished compound fertilizer. And it is mainly comprised of vibrating motor, screen box, damping spring, supporting seat, etc. Its screen can be divided into single-deck screen and double-deck screen, and users can decide their screen type according to their technological requirements.
Technical Parameters of ZD Series Fertilizer Vibrating Screen:
| Model | Output (t/h) | Screen area | Slope of screen |
Working amplitude (mm) |
Vibrating motor | Weight (kg) | |
| Model | Power | ||||||
| ZD1025 | 4-6 | 2.5 | 20° | 2.8-3.4 | ZDS-2.5-6 | 2×0.75 | 1180 |
| ZD1025 | 4-8 | 3.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×0.75 | 1380 |
| ZD1030 | 5-10 | 3.6 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×0.75 | 1560 |
| ZD1230 | 6-12 | 4.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×1.1 | 1800 |
| ZD1340 | 8-16 | 5.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×1.5 | 2500 |
| ZD1435 | 10-20 | 5.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×2.2 | 3200 |
| ZD1440 | 10-25 | 6.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×2.2 | 3500 |
| ZD1554 | 15-25 | 6.8 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×3.0 | 3900 |
| ZD1550 | 15-30 | 7.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×3.0 | 4180 |
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of fertilizer vibrating screen in China. Besides fertilizer vibrating screen, we also provide customers worldwide with wet process ball mill, air swept steel ball mill, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our fertilizer vibrating screen, please contact us freely.
